Q11TC/Q61TC-1000WOG三片式陶瓷球阀概述

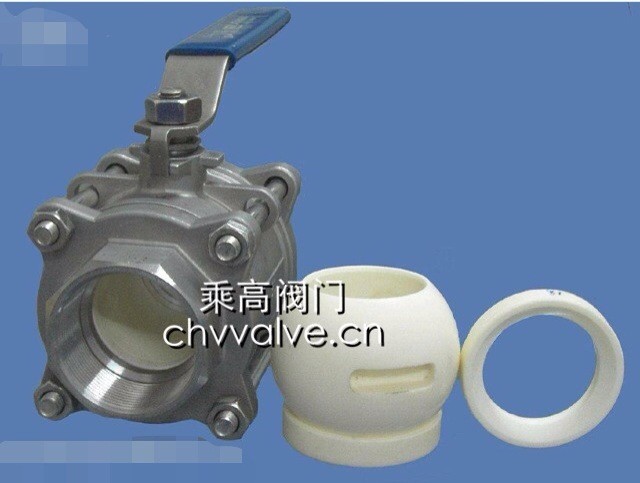

Q11TC/Q61TC-1000WOG three chip ceramic ball valve
Q11TC-1000WOG（内螺纹）/Q61TC-1000WOG（焊接式）三片式陶瓷球阀采用三片式结构，陶瓷做密封，具有优良的耐腐蚀、耐高温、耐磨损、耐冲蚀及防磁、防静电等特点。适用于石化、冶金、造纸、电站、煤炭等行业的各类酸碱盐气体、液体、高温蒸汽、泥浆和灰渣、物料输送系统中。该阀经济实用，根据不同的工况，搭配不同材质的阀门零部件，可以有效增长阀门使用寿命，拓宽阀门使用范围。其驱动方式有手动、气动、电动等。
Q11TC-1000WOG (internal thread) /Q61TC-1000WOG (welding) three piece ceramic ball valve uses three piece structure, ceramic sealing, has the characteristics of excellent corrosion resistance, high temperature resistance, wear resistance, erosion resistant and antimagnetic, antistatic etc. Applicable to petrochemical, metallurgy, papermaking, power plant, coal industry all kinds of acid and alkali salt gas, liquid, steam, mud and ash, the material conveying system. The valve is economical and practical, according to different conditions, with different materials valve parts, can effectively increase the service life of the valve, the valve using range widening. The drive a manual, pneumatic, electric etc..
Q11TC/Q61TC-1000WOG三片式陶瓷球阀主要外形和连接尺寸
Q11TC/Q61TC-1000WOG three chip ceramic ball valve main external and connecting dimensions
适用介质 型号 阀体 球体、阀杆 手柄 密封圈 垫片、填料
Applicable medium type of valve body, valve stem seal gasket ball handle, filler
水、蒸汽、油 Q11TC-16C、Q11TC-25C A105、45 1Cr18/1Cr18Ni9Ti 不
Water, steam, oil Q11TC-16C, Q11TC-25C A105, 45 1Cr18/1Cr18Ni9Ti is not
锈
Rust
钢
Steel
SS304 陶瓷 陶瓷
SS304 ceramics
硝酸类 Q11TC-16P、Q11TC-25P SS304/1Cr18Ni19Ti SS304/1Cr18Ni9Ti
Q11TC-16P Q11TC-25P SS304/1Cr18Ni19Ti SS304/1Cr18Ni9Ti, nitrate
醋酸类 Q11TC-16R、Q11TC-25R
Acetic acid Q11TC-16R, Q11TC-25R
SS316/Cr18Ni12Mo2Ti SS316/1Cr18Ni12Mo2Ti
SS316/Cr18Ni12Mo2Ti SS316/1Cr18Ni12Mo2Ti
Q11TC/Q61TC-1000WOG三片式陶瓷球阀主要外形和连接尺寸
Q11TC/Q61TC-1000WOG three chip ceramic ball valve main external and connecting dimensions
公称通径 管螺纹 尺寸（mm） 重量WT（g）
Nominal diameter pipe thread size (mm) weight WT (g)
d L W H E D D
D L W H E D D
6 1/4″ 8 60 110 56 11.5 30 320
6 1/4 8601105611.530320
10 3/8″ 18 60 110 58 11.5 31 320
10 3/8 18601105811.531320
15 1/2″ 10.5 60 110 58 14 32 350
15 1/2 10.560110581432350
20 3/4″ 13 67.5 110 62 15 38 430
20 3/4 1367.5110621538430
25 1″ 17 73 110 68 15 45 570
251 1773110681545570
32 1 1/4″ 22 90 150 75 18 53.4 1000
321 1/4 2290150751853.4100
40 1 1/2″ 25 97.5 150 83 19 63 1550
401 1/2 2597.5150831963155
50 2″ 32 112 150 90 19 73 2170
502 321121509019732170
65 2 1/2″ 40 132 180 95 21 92 3625
652 1/2 401321809521923625
80 3″ 50 156 220 100 27 109 5800
803 "5015622010027109 5800
100 4″ 65 196 250 115 29 138 7200
1004 "6519625011529138 7200
Q11TC/Q61TC-1000WOG三片式陶瓷球阀订货须知:
Q11TC/Q61TC-1000WOG three chip ceramic ball valve ordering instructions:
①Q11TC/Q61TC-1000WOG三片式陶瓷球阀产品名称与型号
The Q11TC/Q61TC-1000WOG three chip ceramic ball valve product name and model
②Q11TC/Q61TC-1000WOG三片式陶瓷球阀公称压力
The Q11TC/Q61TC-1000WOG three chip ceramic ball valve nominal pressure
③Q11TC/Q61TC-1000WOG三片式陶瓷球阀公称通径
The Q11TC/Q61TC-1000WOG three chip ceramic ball valve nominal diameter
④Q11TC/Q61TC-1000WOG三片式陶瓷球阀连接法兰标准
The Q11TC/Q61TC-1000WOG three chip ceramic ball valve connecting flange standard
⑤Q11TC/Q61TC-1000WOG三片式陶瓷球阀阀体材质
The Q11TC/Q61TC-1000WOG three chip ceramic ball valve body material
⑥Q11TC/Q61TC-1000WOG三片式陶瓷球阀工作介质
The Q11TC/Q61TC-1000WOG three chip ceramic ball valve working medium
⑦Q11TC/Q61TC-1000WOG三片式陶瓷球阀介质温度
The Q11TC/Q61TC-1000WOG three chip ceramic ball valve is the medium temperature
